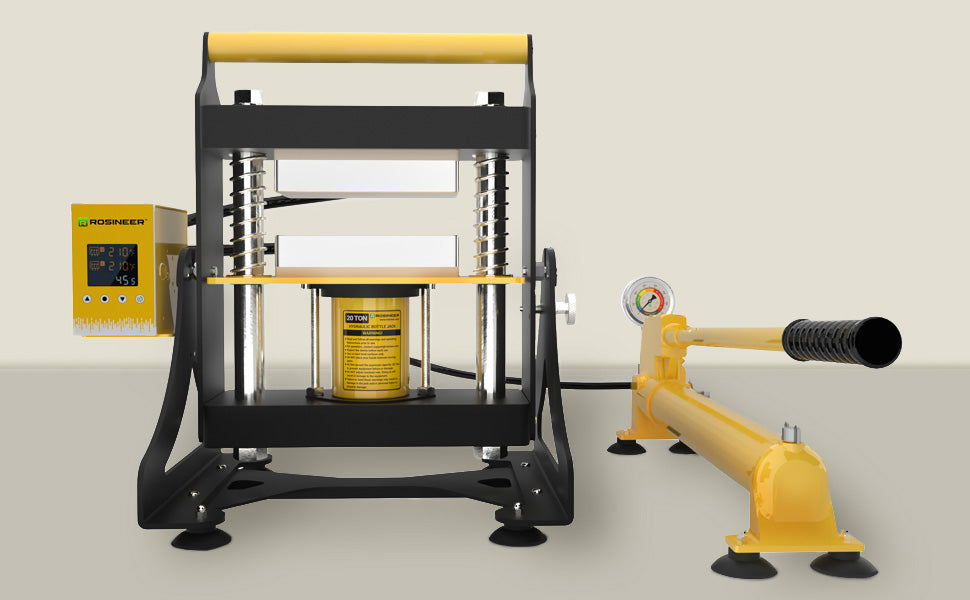

Rosineer SWING Quick Start Guide

1. Position your machine and the hand pump on a sturdy flat table surface.
2. Attach the hand pump's hose to the press hydraulic jack connector.
3. Tightly close the release valve by turning it clockwise.
4. Connect the press control panel to the electrical outlet using the enclosed power cord and flip the power switch. The control panel lights up.
5. Enter your desired press parameters (temperature, time, and temperature scale) using Set, Up, and Down buttons. Please follow the press manual for detailed descriptions and visual guides. Once the parameters are saved, the plates heating starts.
6. Wait until the plates reach the set temperature.
7. Position your precursor in the center of the bottom plate.
8. Gently pump the jack handle to lift up the bottom plate and continue pumping until the plates close and desired pressure between them is reached. Use the built-in pressure gauge to monitor the rising pressure.
9. Start the timer countdown by pressing Timer button.
10. Undo the DripTek latch and tilt the machine forward. Lock it in place by releasing the latch.
11. Wait until the countdown ends and the press starts beeping.
12. Undo the latch and lift up the press into the vertical position locking it with the latch.
13. Stop the timer by pressing Timer button again.
14. Turn the release valve counterclockwise to open the plates.
15. Remove your pressed material using tools or heat resistant gloves.
16. Press the next batch or flip the switch to turn off and unplug it from the outlet.

Amount Per Load: Up to 50 grams
Recommended Accessories
Pre-Press Mold 3" x 5" Rectangular
Filter Bags 3" x 5" (36, 72, 90, 120 micron)
2.5" x 6.5" (36, 72, 90, 120 micron)
3" x 7" (36, 72, 90, 120 micron)
3" x 200" Filter Tube (36, 72, 90, 120 micron mesh options)
Parchment Paper 10" x 7" pre-cut, 50 sheets per set
6" x 8" PTFE sheets, 12 total
Tool set Dabbing & Cleaning Tool Kit
Bamboo Wax Organizer Kit
Cooling Plate 6" x 8" Cooling / Warming Plate
